Model：JXFSTPRP-II-01
Brand：Shanghai Jingxin
Specifications ：PCS
Introduction：The liquid nitrogen grinder first freezes the above-mentioned substances below the embrittlement point, and then is ground to the required fineness in the grinder, and the original ingredients will not be destroyed.

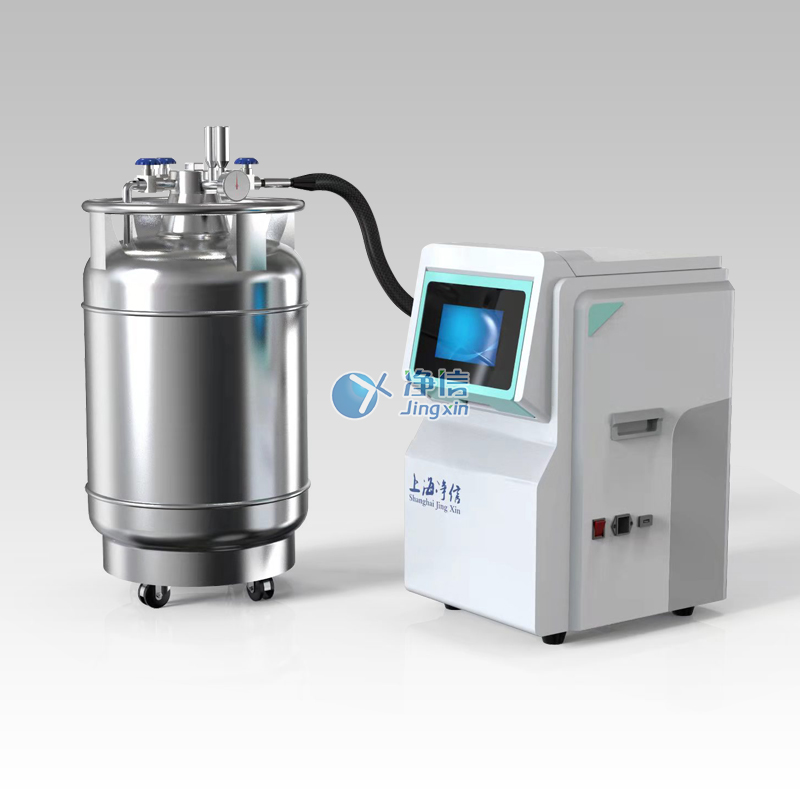

Automatic liquid nitrogen freezing grinding machine JXFSTPRP-II-01 (patented product, counterfeiting must be punished! 2016214095849)
Application range:
This product is specially used to grind heat-sensitive substances, various animal and plant tissues, microorganisms, rubber, plastics, food, medicine, coal, oil shale, wax products, PE, PS, textiles, resins, etc., and exhibits toughness at room temperature. Substances that are difficult to crush.
The liquid nitrogen grinder first freezes the above-mentioned substances below the embrittlement point, and then is ground to the required fineness in the grinder, and the original ingredients will not be destroyed. In addition, flammable and explosive substances at room temperature can also be crushed at low temperature, and the effect is more significant.
Features:
A. High data accuracy and reproducibility
1. The sample is always at liquid nitrogen temperature during the grinding process
2. The sample is cooled to -100°C within 1 minute, and it can reach -196°C within 4 minutes and 30 seconds
3. The sample bottle is in a fully enclosed state during the crushing process, and the sample is completely kept in the bottle to ensure the control of dangerous and important samples.
4. The sample bottles are all sealed independently, it is very convenient to clean after each crushing, to avoid cross-contamination between samples and external contamination
B. Versatility, humanized design
1. Touch screen, can set the grinding time, cycle period, grinding operation frequency and other parameters (optional)
2. Removable control panel (optional)
3. 10 programs can be stored (optional)
4. 1.5ML 2ML 5ML 10ML 25ML 50ML and other sample tubes can be installed for sample grinding
C. Durability
1. There is only one moving part-the collider, which greatly reduces the mechanical stress and prolongs the service life of the equipment
2. Strong technical support: Shanghai Jingxin Company has more than 500 users, professional sample pre-processing equipment production
Grinding comparison：
Operation steps of liquid nitrogen refrigerated grinder
1. Manual operation
(1) Manually immerse the adapter and grinding tank in the liquid nitrogen sample, and quickly cool down to -196 degrees. Prevent sample degradation or change the physical characteristics of the sample
(2) Install the adapter and the grinding jar on the grinding machine. Put on the safety cover and lock the safety lock for operation.
2. Automatic operation
(1) Install the adapter and grinding jar on the grinder. Put on the safety cover and lock the safety lock for operation.
(2) Open the liquid nitrogen connection device, start the liquid nitrogen delivery/or open the air refrigeration instrument (to achieve 0 degree refrigeration)
(3) Turn on the liquid nitrogen control switch. After the liquid nitrogen flows into the crushing tank, the temperature is physically cooled. In about a minute, the temperature quickly drops to -192 degrees
(4) Turn on the grinding button to operate. It only takes 15 seconds to crush the object instantly.
(5) The flow of liquid nitrogen can be controlled in the whole process, and it can be charged at any time during the operation.
Technical parameter:
The main parameters | Parameter range |
Processing system: | It has five major systems, sample grinding system, low temperature conveying system, low temperature control system, circuit control system, and heat preservation system |
Application areas: | Biology, food, agriculture, pharmaceuticals, chemical/synthetic materials, engineering/electronics, building materials, glass/ceramics |
Automatic filling of liquid nitrogen: | The flow of liquid nitrogen can be controlled in the whole process, and it can be charged at any time during the operation. |
Operation method: | Fully automatic |
Connection device: | With liquid nitrogen connection, automatic transfer from storage system to sample grinding system |
Low temperature or liquid nitrogen grinding: | Yes, it can be connected to a liquid nitrogen tank (Type II) or an air cooler (Type I) |
Shell Design: | The shell is all made of hard steel, to avoid having a plastic cover, which affects safety. |
Sample Features: | Hard, medium-hard, soft, brittle, elastic, fibrous |
Crushing principle: | Low temperature freezing force, mechanical impact force, physical friction force |
Temperature range: | -196℃-100℃ |
Feed size | ≤ 8 mm |
Discharge size | 0~ 5 μm |
Standard machine processing sample size: | 50ml*2(Can be customized) |
Grinding jar size: | 1.5ml/2ml/5 ml /10ML/ 25 ml / 35 ml / 50 ml.(Can be customized) |
Grinding jar placement: | It can be done once without the need to repeat the placement twice, extending the working time and affecting the sample temperature. |
Grinding working speed: | Grinding speed: 1-70HZ adjustable (30-2100 rpm/100-7000RPM) |
Anti-vibration principle | JXFSTPRP-1 anti-vibration principle, as well as a special three-dimensional vibration mode of up and down and left and right shaking, the sample moves in a three-dimensional figure 8 shape in space, which can be suitable for cracking various animal and plant tissues and microorganisms, and extract DNA, RNA and protein conveniently and quickly |
Typical liquid nitrogen grinder: | 15S |
Grinding jar material: | Stainless steel, PTFE, Teflon, carbide steel, etc. |
Grinding Ball Material: | Alloy steel, chrome steel, zirconia, tungsten carbide, quartz sand |
Accelerate: | Reach maximum speed in 2 seconds |
Decelerate: | Reach lower speed in 2 seconds |
Standard | ISO /CE |
Remark
* The matching jingxin kit can be used to quickly, efficiently, stably, and batch extract DNA/RNA proteins from samples, etc.
