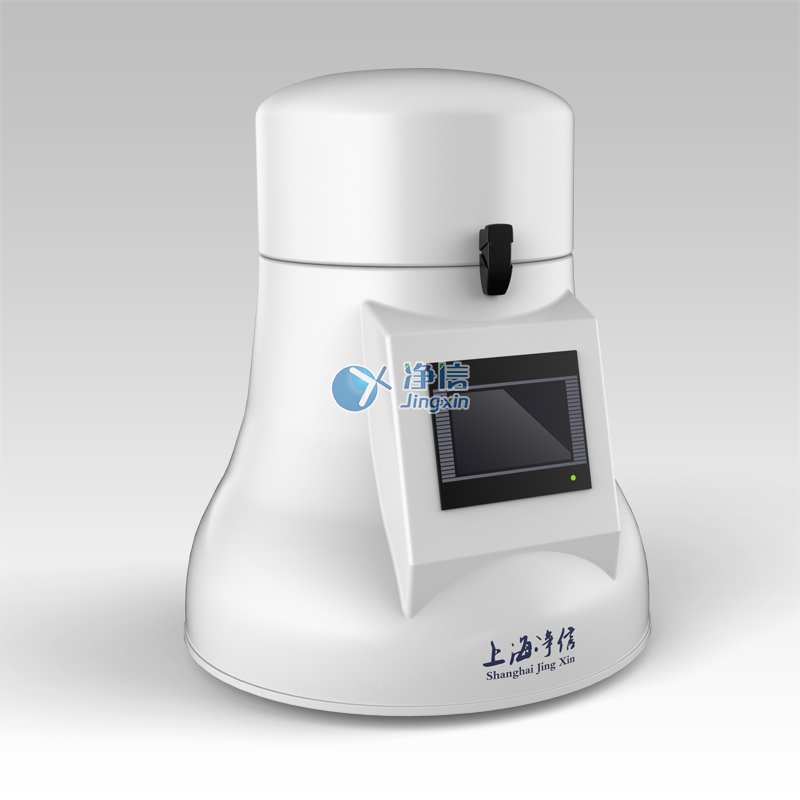

Shanghai Jingxin?'s high-throughput tissue grinder (patented product, counterfeit must be investigated! ZL2018300207398) is a special, fast, high-efficiency, multi-test tube consistent system. It can extract and purify the original DNA, RNA and protein from any source (including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, paleontological specimens, etc.).
Product features of high-throughput tissue grinder:
Usage: crushing, mixing, homogenizing and cell disruption, freezing grinding
Application areas: agriculture, biology, chemistry, plastics, building materials, electronics, environment, food, glass, ceramics, medicine, mineral metallurgy, etc.
Applicable samples: plants (roots, leaves, seeds, etc.), animals (muscles, internal organs, bones, teeth, etc.), microorganisms, food, soil, minerals, etc.
Applicable sample texture: hard, moderately hard, soft, brittle, elastic, fibrous, etc.
Crushing principle: impact force, friction force
Movement mode: horizontal reciprocating oscillating ball mill
Grinding type: dry grinding, wet grinding, low temperature grinding
Main parameters | Parameters range |
Sample temperature rise protection design: | Have |
Number of grinding platforms: | 2 |
Sample throughput: | 24 2.0ml sample tubes, 10 5.0ml sample tubes or 2 15ml grinding jars |
Parameter display mode: | Digital Display |
Vibration frequency setting: | 100-2000 times/min, continuously adjustable |
Crushing time setting: | 0 seconds - 9999 minutes |
Interval time setting: | 0 seconds - 99 seconds |
Programming function: | Programmable grinding time, pause time and number of cycles |
Intermittent oscillation function: | Have |
Typical crushing time: | 2 minutes |
Injection size: | ≤8mm |
Discharge particle size: | ~5μm |
Center automatic positioning and tightening: | Self-contained center automatic positioning and fastening device |
Flip switch: | Automatic stop when the cover is opened |
Security Level: | Compliant with EU CE certification |
Main body material: | All metal body |
Cryogenic grinding function: | Adapters and grinding jars can be immersed in liquid nitrogen Sample temperatures up to -192°C |
Accessories for high-throughput tissue grinders：
Grinding jar: Optional: a pair of 15ml screw-cap grinding jars, available in various materials such as hard steel, Teflon and corundum
Grinding test tube fixture: Optional: a pair of 12-hole 2ml adapters, a pair of 5-hole 5ml adapters
Other optional accessories: all-steel grinding beads (φ2/3/5/8mm), tungsten carbide grinding beads (φ3/5mm), zirconia grinding beads (φ5mm), glass beads (φ0.1-2mm), hard grinding Test tubes (24/pack), stainless steel grinding tubes (8/pack)
